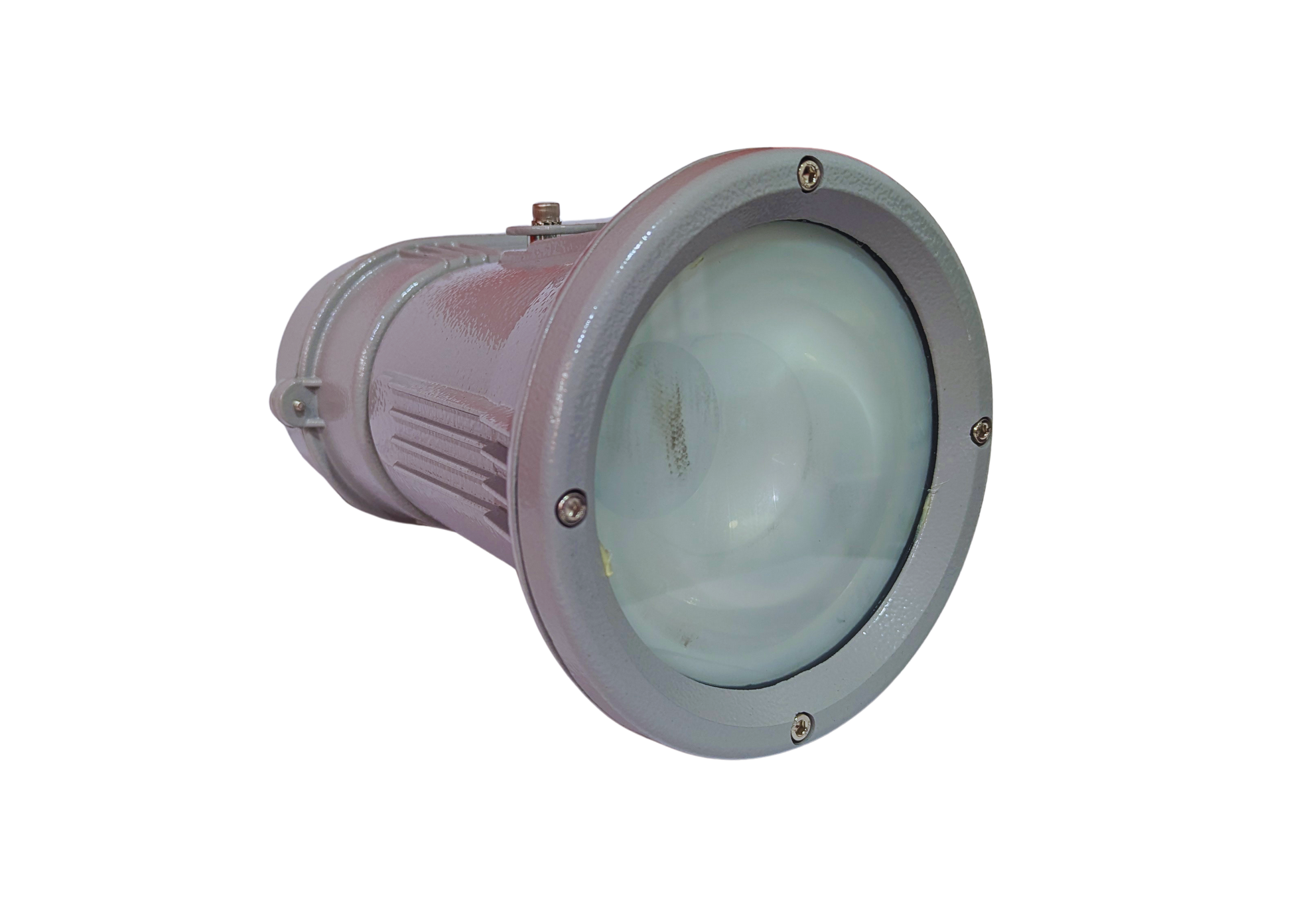

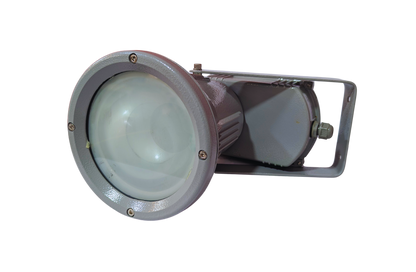

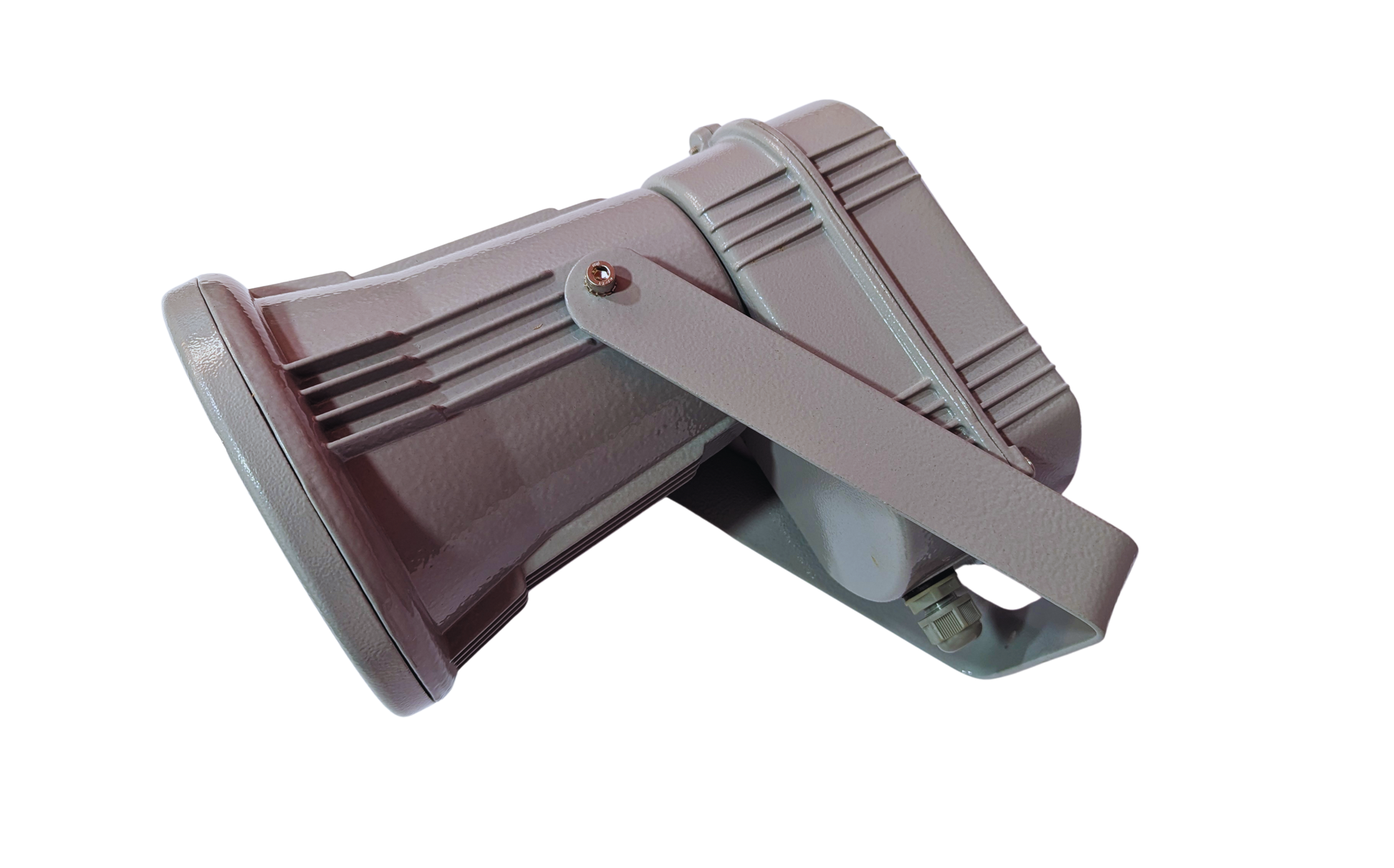

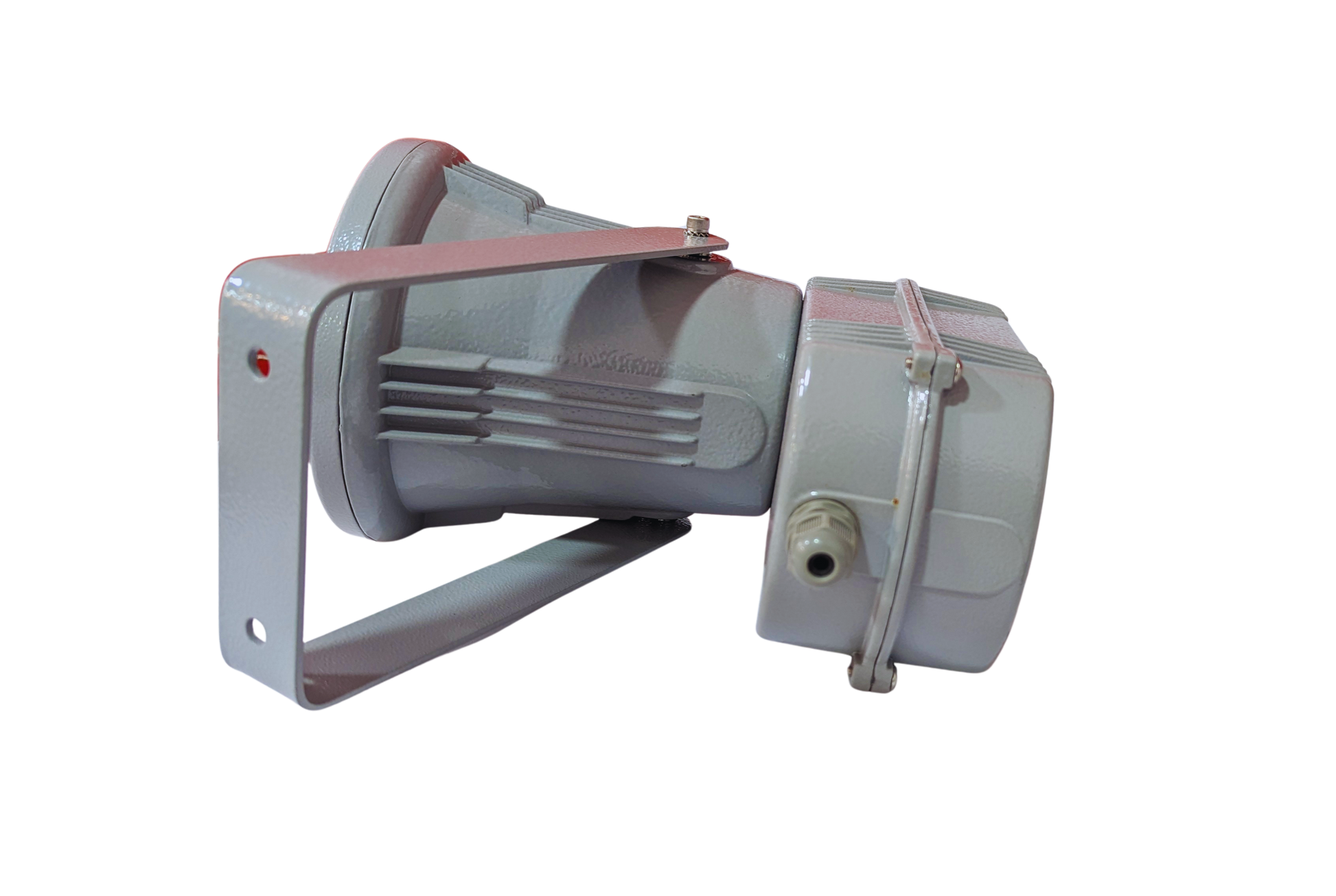

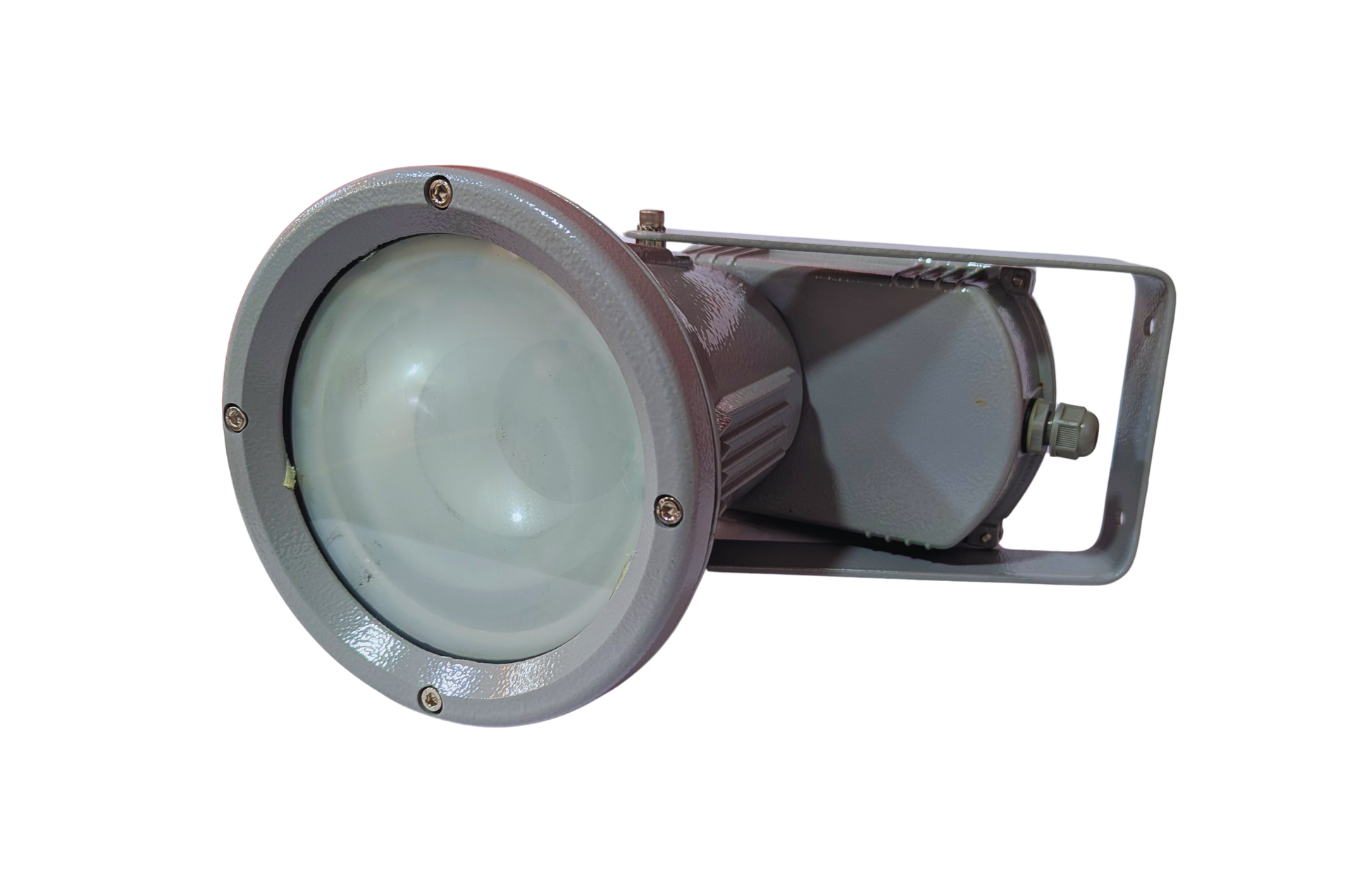

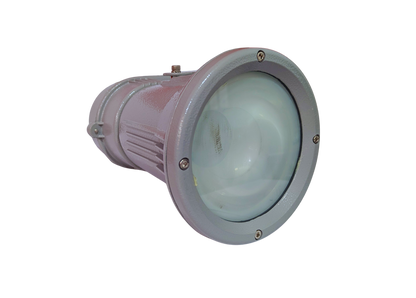

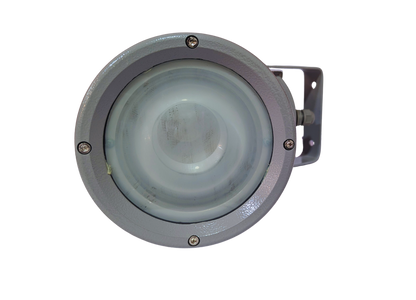

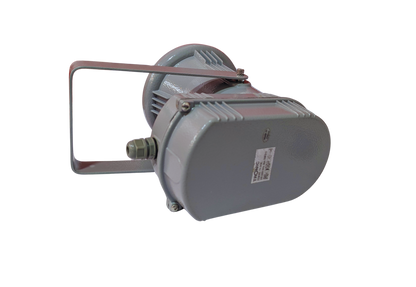

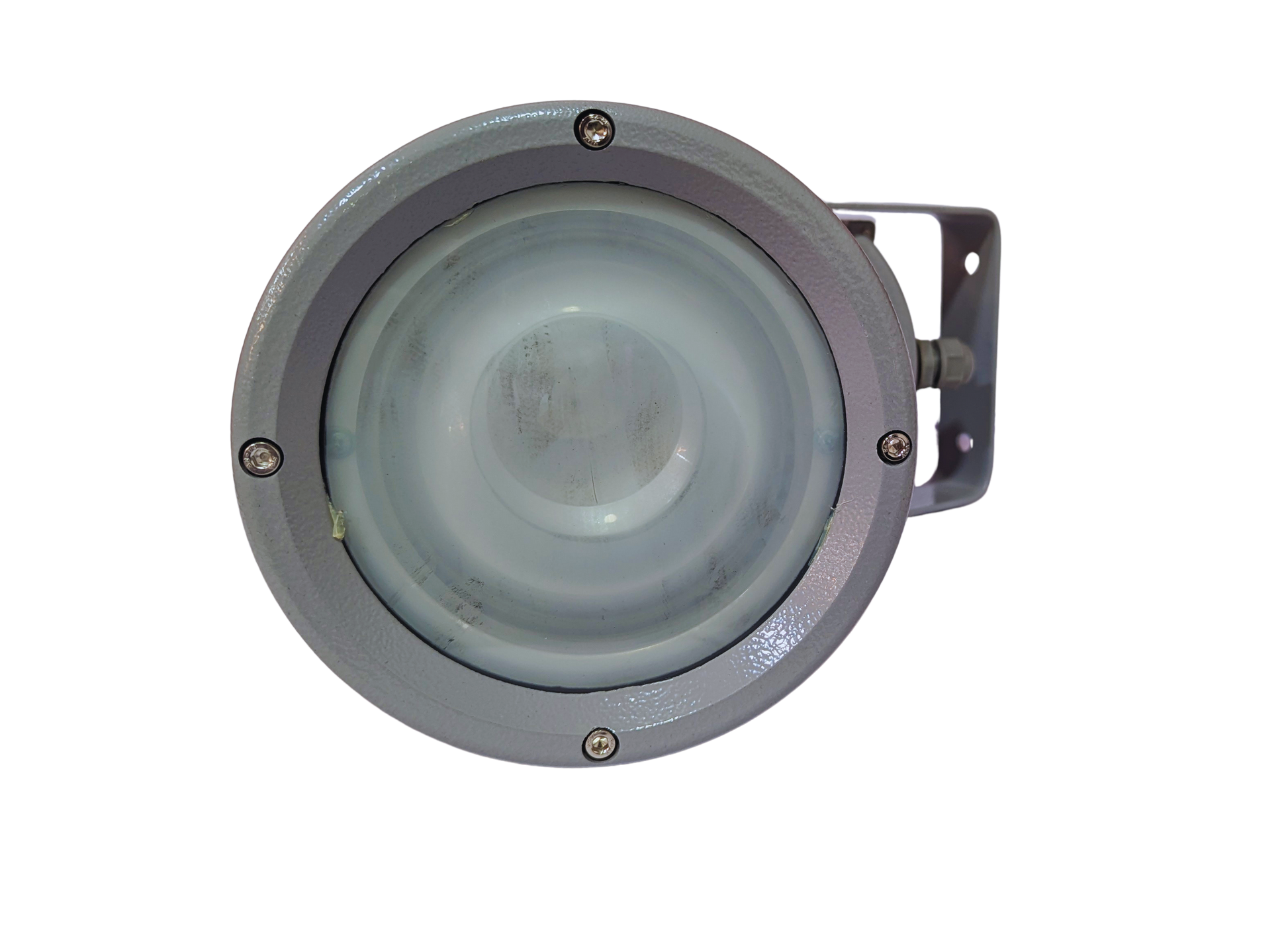

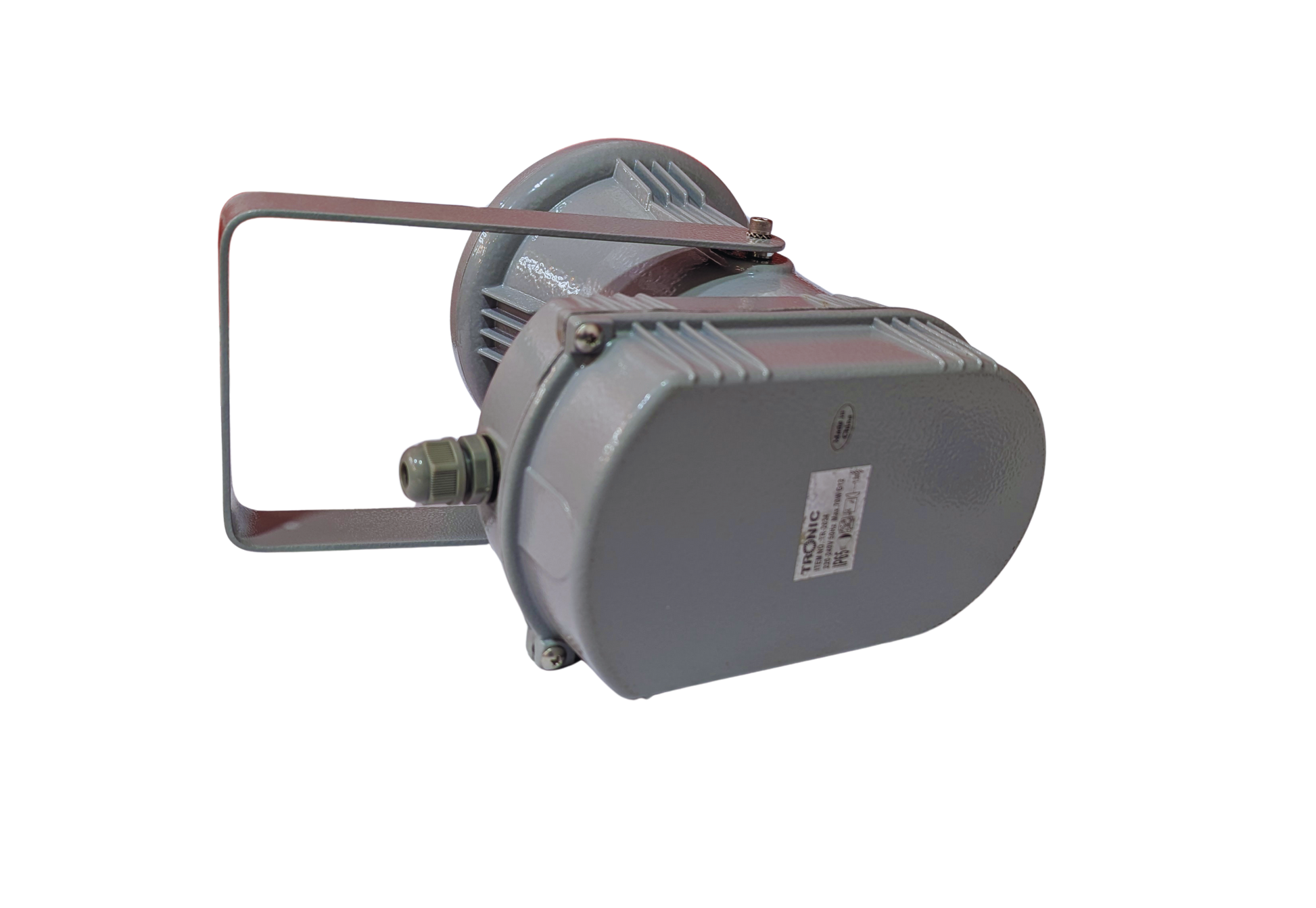

Fitting Spot Light Outdoor G12 70W (TR2034)
Fitting Spot Light Outdoor G12 70W (TR2034)
FITTING SPOT LIGHT OUTDOOR G12 70W TR 2034
INSTALLATION USE AND MAINTENANCE INSTRUCTIONS
Warning ! Safety of this floodlight is guaranteed only if the following:
instructions are properly respected. It is therefore necessary to preserve them.
-
Warning! Before connecting to the main network, during positioning or
replacement of lamps, ensure the tension has been disconnected.
-
For positioning or replacement or lamp, follow the instructions given1
by the lamp's manufacturer, which should be supplied with the lamp2
itself. Use only lamps with anti-UV protection.3
When the floodlight is on, ensure that a minimum distance of 1m between4
the lamp and the illuminated surface is respected, as indic5ated by the
relative symbol(Fig.2-3).(--1.0m)
-
The floodlight can be used only with the protective glass.It's a float
tempered glass. Sodic-calcic type.
-
The floodlight is suitable for outdoor and indoor use.
-
Fix the supporting bracket of the floodlight by means of (at least) 2
screws M10 positioned in the outer holes of the bracket(Fig.4).
-
Installation height: any.
-
After adjusting the floodlight's aiming, tighten the 3 screws M8 which is
fixing to the bracket, with 50+55Nm torsion.
-
The floodlight is not suitable for serial installation of more floodlights.
-
For wire connections of the floodlight make use of cables type
H05 RN-F with diameter ϕ=7+-11mm and minimum section of 1mm$^2$
for each lead-in wire.
-
Connect it to the terminal board as shown in Fig.1.
-
After connecting the feeding cable to the floodlight's terminal board
block it with the cable clamp and tighten the cable gland deeply.
-
During installation and use,follow the instructions about functioning
positions and minimum distances as indicated by Figures 5-6 and do
not aim the floodlight towards walls or ceilings.
-
Each angle will be controlled by tightening the affixed screw ate the
bracket. Fig7
FLOODLIGHT FOR METAL HALIDE
AND HIGH-PRESSURE SODIUM LAMPS
Characteristics
-
Voltage: Single Phase 220V-240V~ 50Hz
-
Insulation class: I
-
Lamp's Power and Current: 70W 1.0A/150W 1.8A
-
Cos : 0.9
-
Lamp holder: G12
-
Protection degree: IP65
-
Screws: M8
-
Net Weight: 1.94kg(3.3kg)/1.94kg(3.8kg)
-
Max surface exposed to the wind: 1m$^2$
