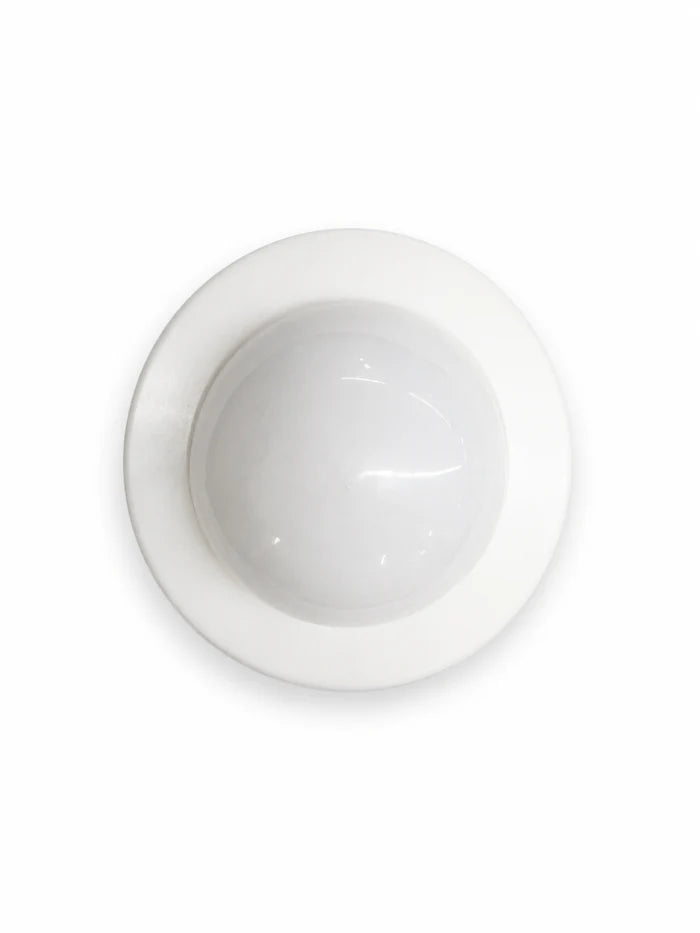

360° Ceiling Mounted PIR Motion Sensor – PH 1546

Improve energy efficiency and automate lighting control with this advanced 360° PIR Motion Sensor. Designed for ceiling-mounted installations, it provides full-area motion detection with a maximum sensing distance of up to 20 meters. The adjustable time delay and ambient light settings allow customized operation based on specific application requirements. Suitable for residential, commercial, and industrial environments, this sensor automatically switches connected lighting loads on when movement is detected and off when the area becomes unoccupied. Its reliable performance, long service life, and wide detection coverage make it an excellent solution for smart lighting control and security enhancement.

Features:

• Product Type: PIR Motion Sensor
• Detection Angle: 360°
• Power Supply: 220-240V AC
• Frequency: 50/60Hz
• Rated Load (Lighting): 2000W
• Rated Load (LED/Energy Saving): 1000W
• Maximum Detection Distance: 20m (<24°C)
• Time Delay:
• Minimum: 10 seconds ±3 seconds
• Maximum: 30 minutes ±2 minutes
• Ambient Light Setting: 3-2000 Lux (Adjustable)
• Installation Height: 2.2-2.5m
• Motion Speed Detection: 0.6-6m/s
• Working Humidity: <93% RH
• IP Rating: IP20
• On/Off Cycles: ≥10,000
• Operating Temperature: -20°C to +40°C

Applications

• Offices: Automates lighting in meeting rooms, corridors, and workspaces.
• Warehouses: Provides hands-free lighting control in storage areas.
• Retail Stores: Improves convenience while reducing energy consumption.
• Parking Areas: Activates lighting automatically when movement is detected.
• Residential Buildings: Ideal for hallways, staircases, and entrances.
• Commercial Facilities: Suitable for large indoor spaces requiring wide detection coverage.
