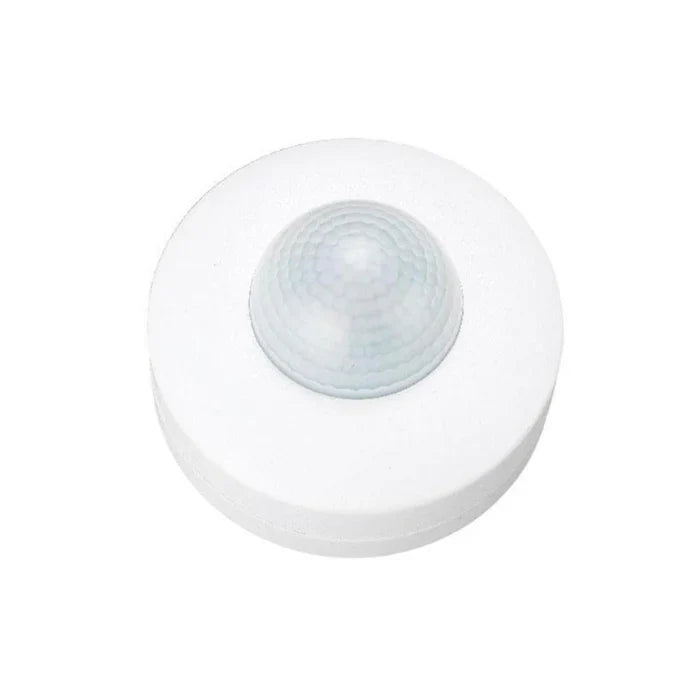

Sensor Switches Degrees Infrared Motion White — PH 1501

This sensor is usually ceiling mounter and is ideal for use in garages, corridors, stairways, halls etc. for turning lights on when It senses motion. It senses motion using infrared sensors and has an inbuilt photocell allowing the user to determine if the lights should come on during the night time only or even during the day.

This model detects movement up to 8 meters away within a 360° field of view.

Additional Information

Colour White

Watt

Rated Load:

-1200W(220-240C/AC)

-800W(110-130V/AC)

-300W(220-240V/AC)

-200W(110-130V/AC)

Voltage Max: AC 220-240 Min: AC 110-130

Material Plastic

Additional features

IP20

360-degree

Detection Distance: 12m Max(<24 Degrees Celsius)

Time Delay:-Min. 10 sec + 3 sec

-Max. 7 min + 2 min

Ambient Light: <3-2000 LUX (Adjustable)

Installation Height: 2.2 - 4m

Detection Motion Speed: 0.6 - 1.5m/s

Warranty 1 Year

Application Lighting upon sensing motion
