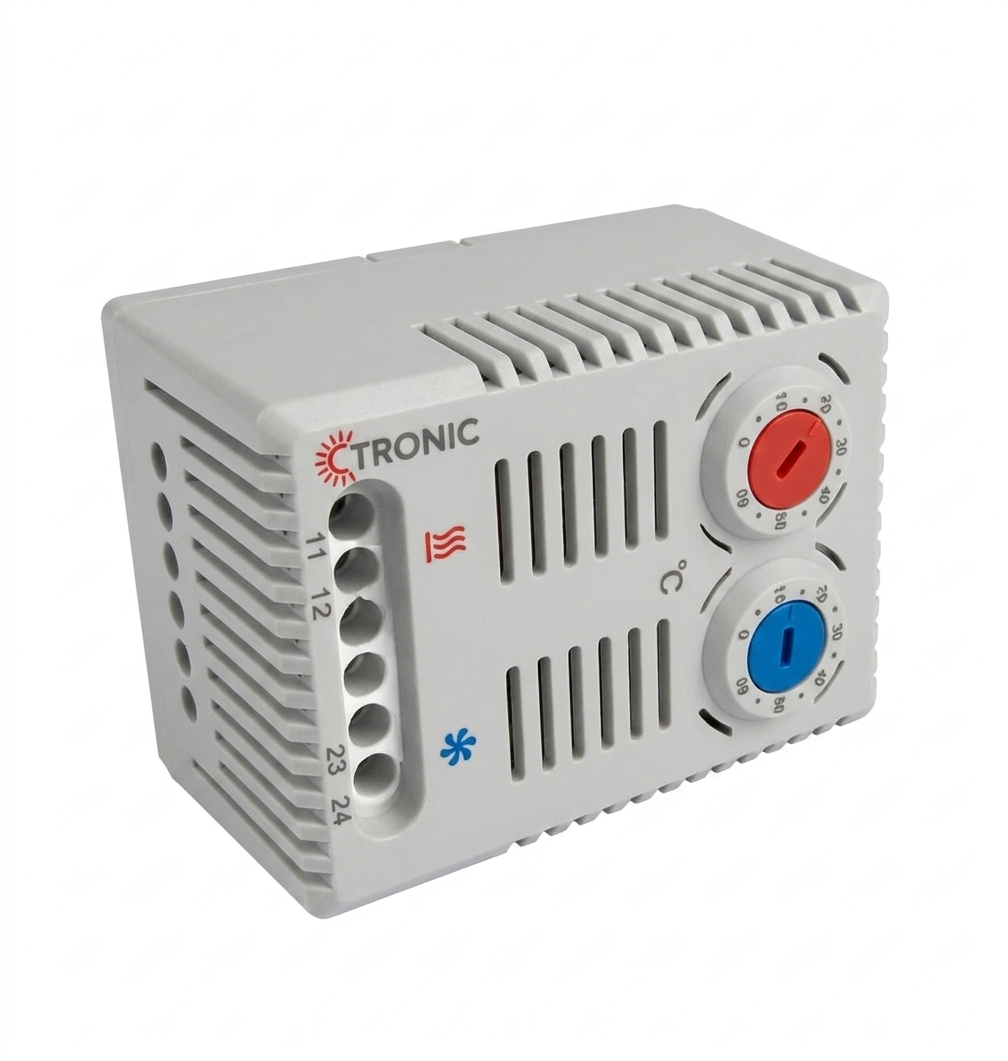

Tronic TH STAT – Mechanical Temperature Control Switch

The Tronic TH STAT is a reliable, CE-certified mechanical thermostat designed for precise temperature regulation in electrical enclosures and industrial control panels. Ideal for protecting heating and cooling equipment, filter fans, heat exchangers, and temperature alarm systems.

Contact Configuration

•

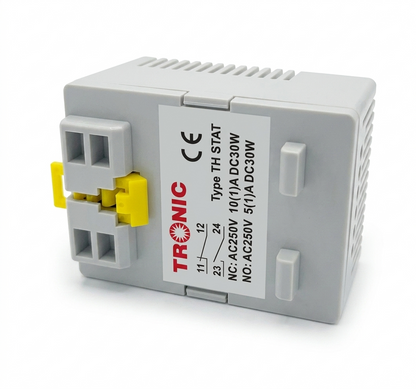

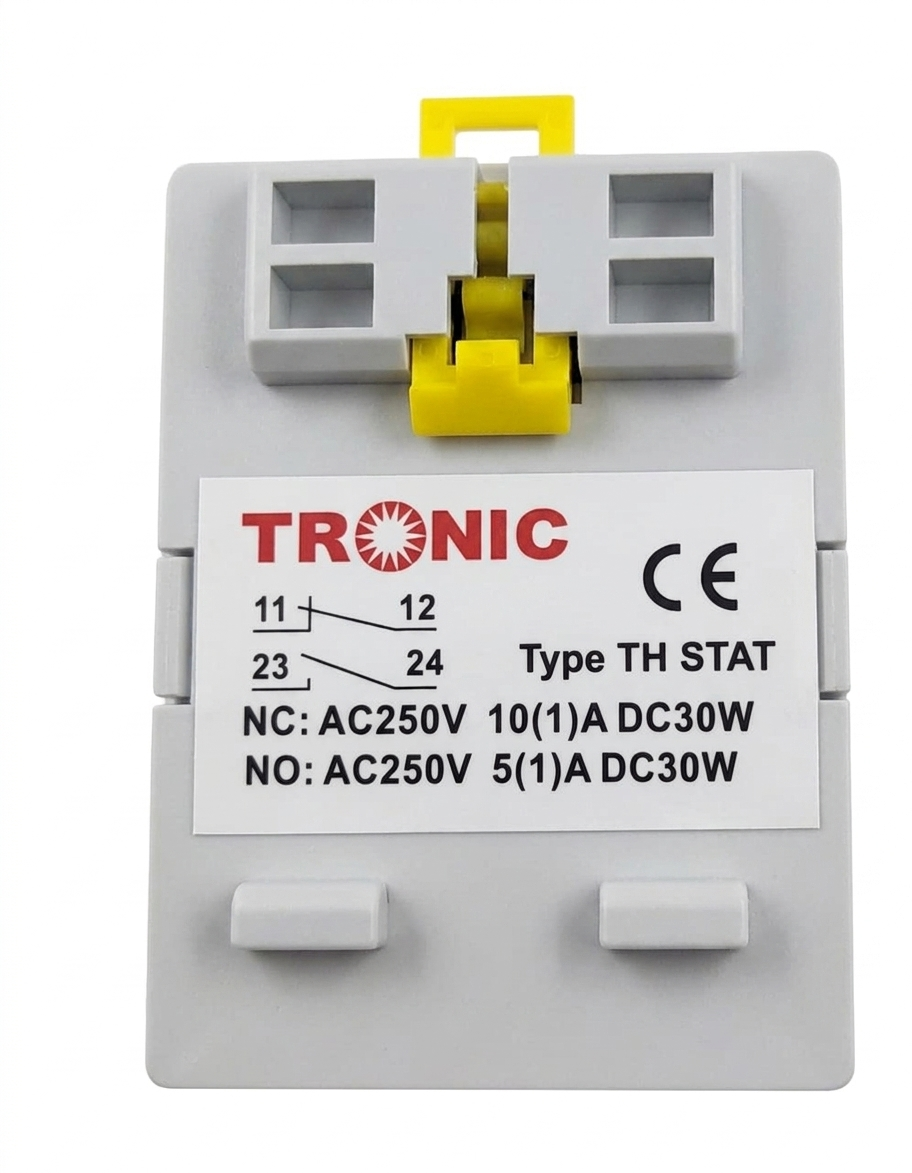

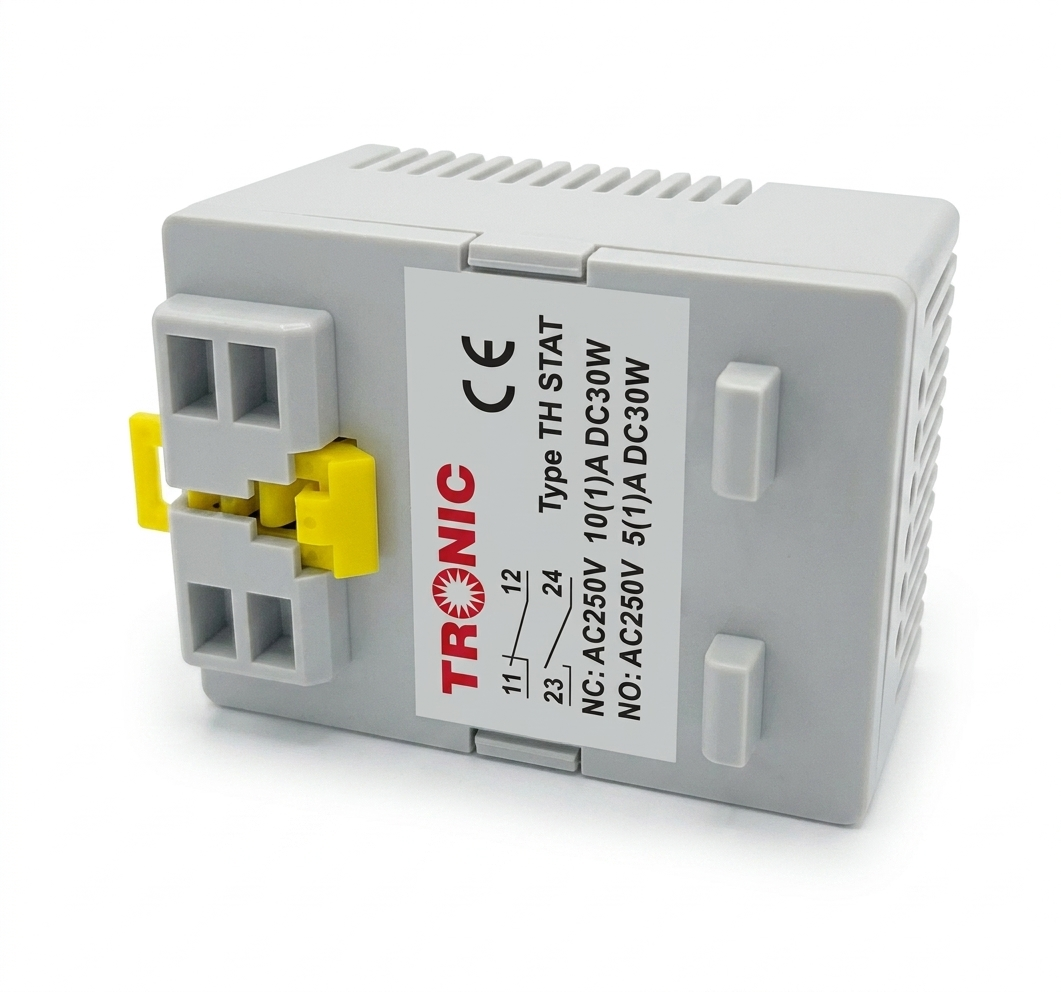

  NC (Normally Closed) – Terminals 11 & 12: AC 250V / 10(1)A / DC 30W — Contact opens at rising temperature


•
  NO (Normally Open) – Terminals 23 & 24: AC 250V / 5(1)A / DC 30W — Contact closes at rising temperature

Key Features

•  CE Certified — meets European safety standards


• DIN Rail mounting (35mm, EN50022 standard)


• Operating temperature range: -20°C to +80°C



• Adjustable set point with hysteresis of 7K ± 4K


• Compact, snap-on design for easy panel installation


• Suitable for both heating and cooling applications


Applications

• Electrical enclosure temperature control


• Heating and cooling equipment regulation


• Filter fan control


• Heat exchanger management


• High/low temperature alarm switching

Installation Notes

• For heating applications: mount in the upper area of the enclosure, away from heat sources


• For cooling applications: mount at the bottom of the enclosure, away from the cooling device


• Do not cover ventilation openings at any time


• Must be installed by a qualified technician in accordance with national electrical codes

Brand: TRONIC  |  Model: NT71-F  |  Type: TH STAT
