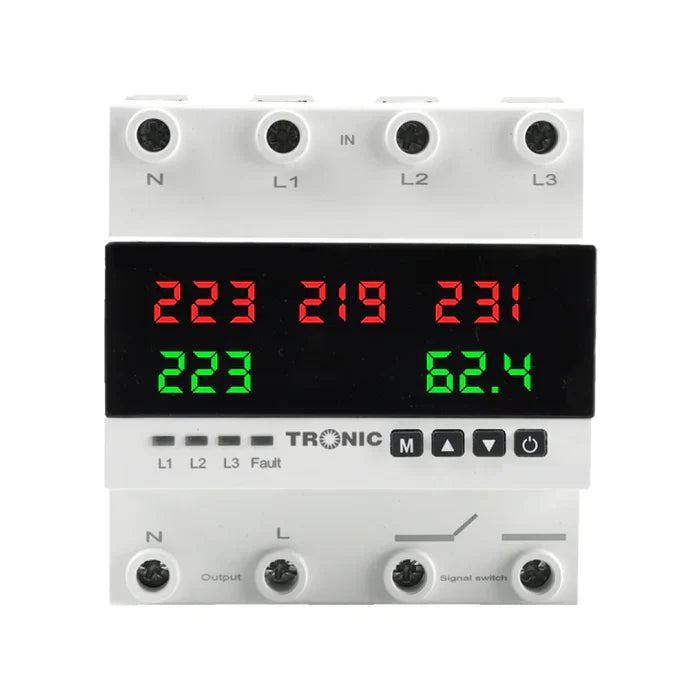

Changeover Three-Phase 100A White — CO APS5-100

The Tronic CO APS5-100 Automatic Phase Selector is a smart changeover switch designed to ensure stable power supply in 3-phase systems by automatically selecting the best available phase based on user-defined voltage thresholds. It features a digital LCD display, customizable settings, and protection against overvoltage, under voltage, and overcurrent. This DIN-rail mounted device is ideal for residential, commercial, and light industrial setups that require seamless and reliable power transfer between phases.

Technical Parameters:

•
  Model: CO APS5-100


•
  Operating Voltage: AC 220–240V, 50Hz


•
  Rated Current: 100A Max (adjustable from 1–100A)


•
  Pole Configuration: 3 Phase + Neutral


•
  Surge Protection: 1.8kV


•
  Overvoltage Protection Range: 230–300V (Default: 270V)


•
  Undervoltage Protection Range: 140–220V (Default: 170V)


•
  Power-On Delay Time: 1–600 seconds (Default: 5s)


•
  Protection Recovery Delay: 1–600 seconds (Default: 5s)


•
  Overcurrent Action Time: 0.1–10 seconds (Default: 0.5s)


•
  Voltage Accuracy: <1%


•
  Max Operating Phase Voltage: 350V


•
  Switch Delay to Reserve Phase: ≤2 seconds


•
  Display Type: Digital LCD


•
  Mounting Type: DIN Rail


•
  Product Dimensions: 90mm (W) × 95mm (H) × 66mm (D)


•
  Operating Temperature: –10°C to +50°C


•
  Storage Temperature: –25°C to +55°C


•
  Humidity Tolerance: ≤ 90% RH (non-condensing)

Applications:

•
  Home Power Backup: Ensures continuity during phase drop or failure


•
  Shops & Offices: Maintains stable supply for sensitive equipment


•
  Industrial Machines: Reduces downtime due to unbalanced phases


•
  Generators & Panels: Integrates with smart changeover systems
