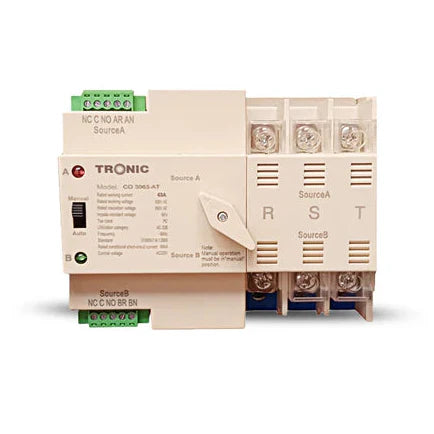

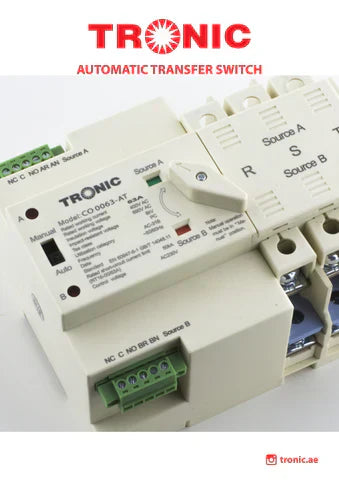

Changeover 3Pole 63A Three-Phase Beige — CO 3063-AT

The CO 3036-AT is a 63A Automatic Changeover Switch designed for three-phase 400V AC systems. With fast transfer time, high short-circuit resistance, and 8kV surge protection, it ensures smooth power transition between grid and backup sources. Ideal for homes and businesses using 3-phase power, it switches automatically to maintain uninterrupted electricity during blackouts or fluctuations.

Features:

•
  Rated Current: 63A


•
  Rated Working Voltage: AC 400V


•
  Rated Insulation Voltage: AC 690V


•
  Impulse-Resistant Voltage: 8kV


•
  Use Category: AC-33B


•
  Poles: 3P


•
  Frequency: 50Hz


•
  Transfer Time: ≤50ms


•
  Off-Time: ≤50ms


•
  Weight: 0.68kg


•
  Control Voltage: AC220V


•
  Rated Conditional Short-Circuit Current: 55kA


•
  Mounting Style: Vertical mount


•
  Safety Clearance: S1 ≥ 30mm, S2 ≥ 203mm


•
  Standard Compliance: EN60947-6-1:2005


•
  Dimensions (L × W × H): 107.5mm × 78.5mm × 104mm

Applications:

•
  Three-Phase Homes: Smooth switchover from grid to generator


•
  Workshops & Shops: Reliable backup for machinery


•
  Solar Hybrid Setups: Switches between inverter and grid


•
  Offices: Maintains power to essential systems


•
  Industrial Lighting: Supports lighting and equipment stability
