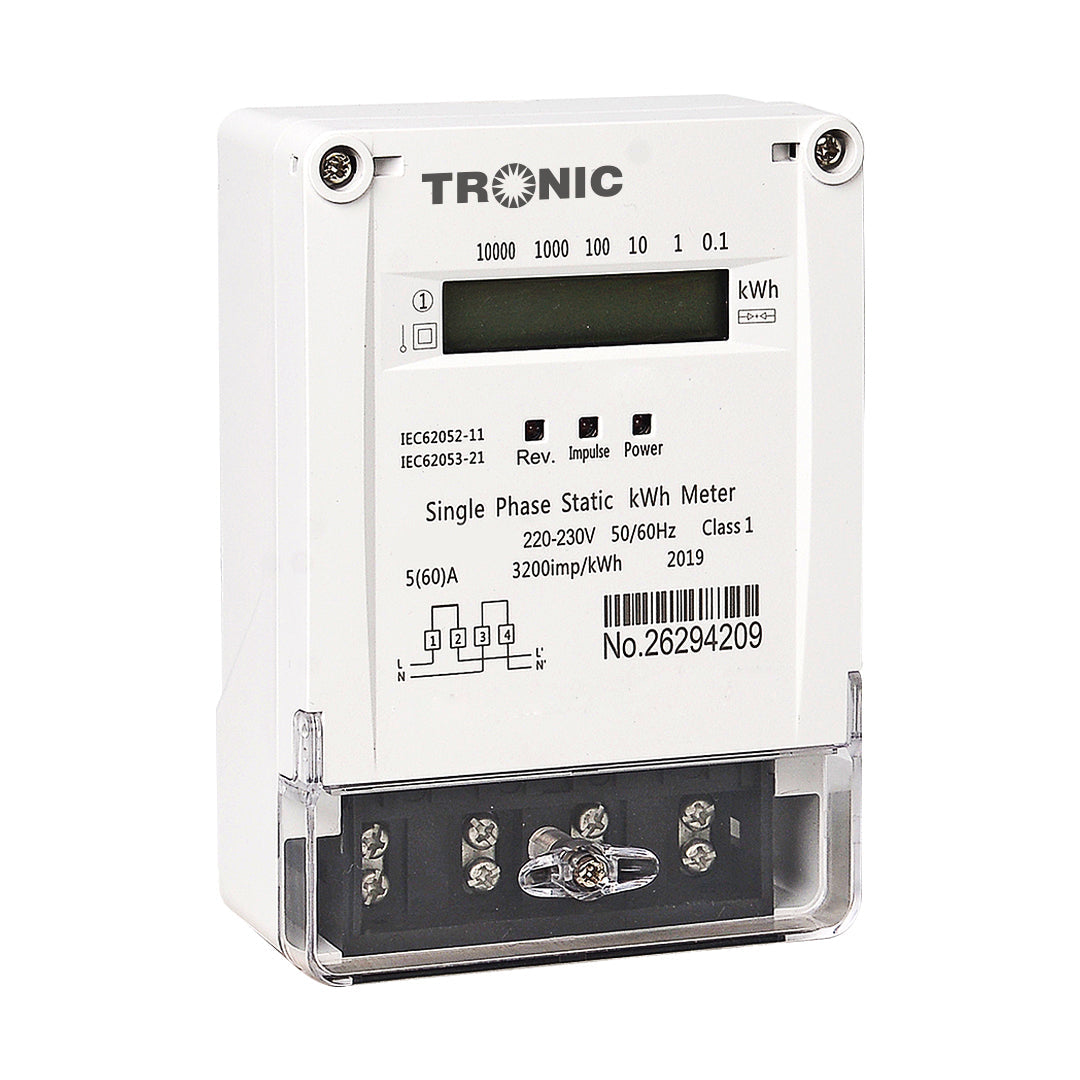

Energy Meter Single-Phase White — EM 0015-JC

Single Phase Energy Meter is the most advanced type whole electronic watt-hour meter adopted big scale integrated circuit and practicing digital sampling technique and SMT technique by us, which is suitable for measuring active energy in electric net with Single Phase AC 50Hz or 60Hz.

Rated Voltage AC: 220V
Working Voltage Range: 0.8 - 1.2Un
Rate Current: 5(60)A
Frequency: 50Hz
Accuracy Class: 1.0
AC Voltage withstand: 4000V/25mA for 60sec
Work Temperature: -30° -70°
